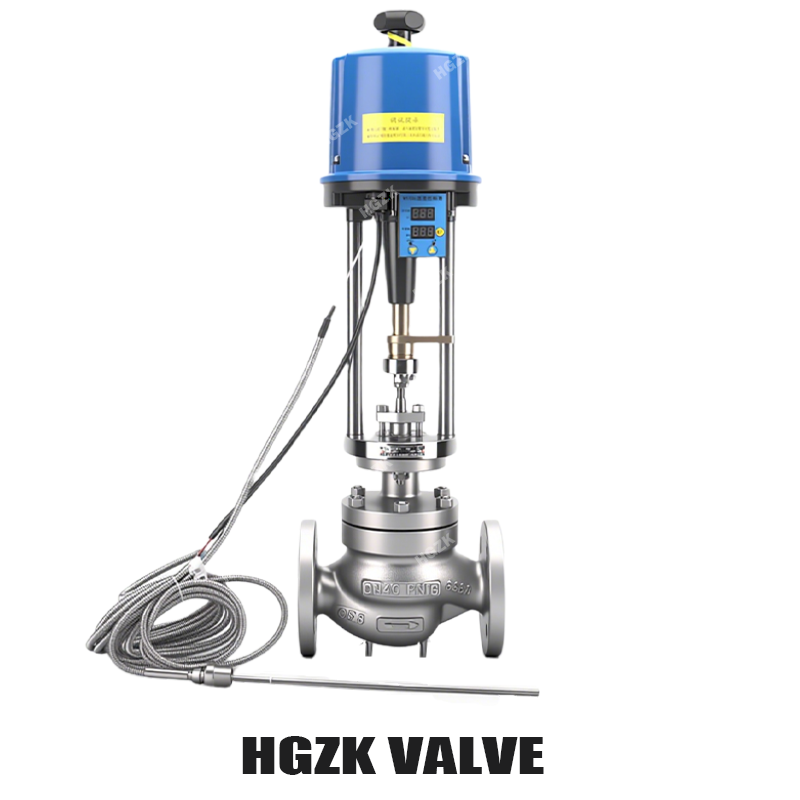

Electric temperature control valve

Self-operated electronically controlled temperature control valve (suitable for larger diameter and thermal oil control). The biggest feature of this valve is that it only requires an ordinary 220V power supply. It uses the energy of the medium to be adjusted to directly control steam, hot water, hot oil, gas and other media. The temperature is automatically adjusted and controlled, and can also be used to prevent overheating or heat exchange situations.

Electric Temperature Control Valve

• Nominal diameter DN (mm)：DN15~200
  - Nominal pressure PN (MPa):1.6Mpa 4.0Mpa
  - Flow capacity(m³/h)：5~630
  - Rated stroke(mm):6~40
  - Temperature adjustment range (℃)：0~120 100~250
  - Adjustment accuracy(%)：±1~±5
  - Media:Steam, water, oil, gas
  - Capillary length (m):3m, 5m, 10m
  - Warm bulb penetration depth：270, 430, 630
  - Connection thread：3/4 "1"
